JCB JS160W Wheeled Excavator

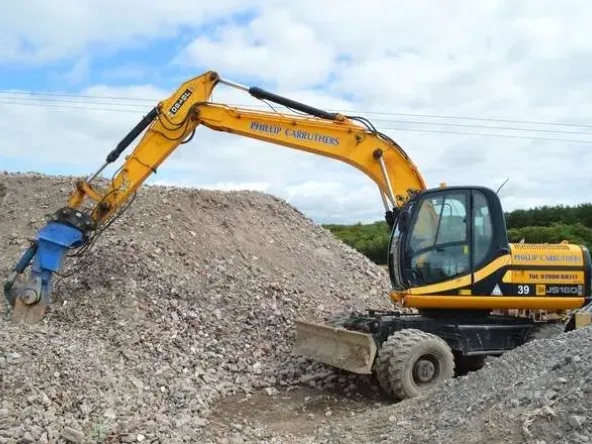

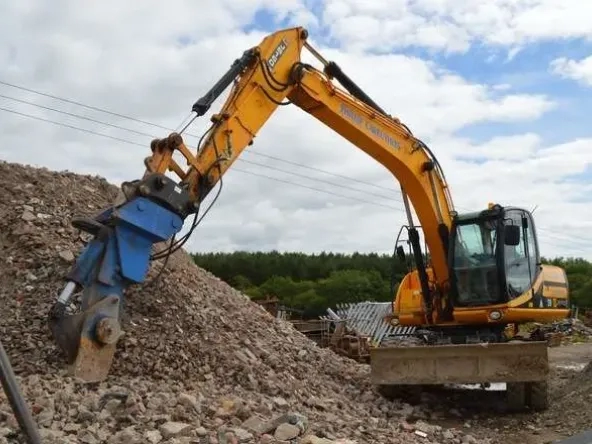

Comes with standard bucket or ‘Shear’ attachment as shown
Maximum Operating Weight: 17820 Kg
Nett Engine Power: 123 Hp
Shipping Length of Unit: 8145 mm
Shipping Height of Unit: 2765 mm
Max Cutting Height: 9195 mm
Max Loading Height: 6405 mm
Max Reach Along Ground: 8455 mm
Max Vertical Wall Dig Depth: 4490 mm
Max Digging Dept: 5425 mm
Dimensions
Ground Clearance: 350 mm
Overall Width – Outriggers Down: 2490 mm
Height to Top of Cab: 3070 mm
Upper Structure Clearance: 1270mm
