Rammer RPV22R 22 Te-30 Te Rotating Pulveriser (APK UK)
Company Description

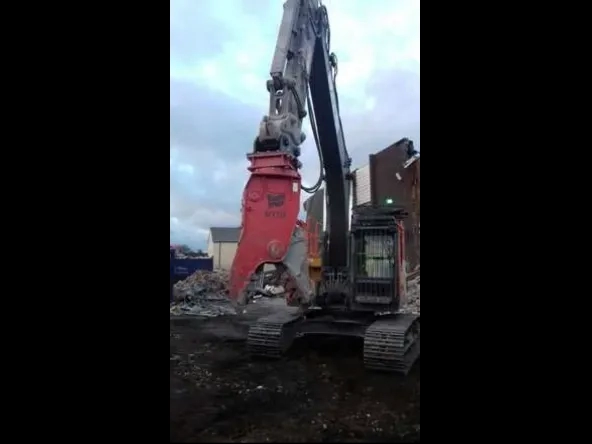

Rammer RPV22R 22t-30t Rotating Pulveriser
Minimum working weight, flange mounted – 2080 kg (1)
Weight – 1900 kg
Max. jaw opening – 750 mm
Max. cutting force – 2680 kN
Max. crushing force – 1100 kN
Jaw width – 475 mm
Operating pressure – 300 – 350 bar
Max. operating pressure – 350 bar
Max pressure for hydraulic rotation – 150 bar
Oil flow range 180 – 200 l/min
Oil flow for hydraulic rotation – 30 l/min
Closing time at max oil flow – 1.4 s
Opening time at max oil flow – 2.3 s
No. of cycles per minute at max oil flow – 16.3
Max. diameter to be cut – 55 mm
Pressure line connection (IN) – SAE 6000 psi 1″
Return line connection (OUT) – SAE 6000 psi 1″
Connections, rotation – 1/2″ GAS
Optimum oil temperature 40 – 60 °C
Allowed oil temperature range -20 – 80 °C
Optimum oil viscosity at operating temperature 30 – 60 cSt
Allowed viscosity range 20 – 1000 cSt
Carrier weight, range 18 – 26 t (2)
*1 Includes average mounting bracket and standard tool
*2 Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.
Delivery charge includes delivery and collection within 30 miles radius of Penrith. If distance required is further, please message us.
