Rammer RGP28R 22 Te-30 Te Grapple (APK UK)
Company Description

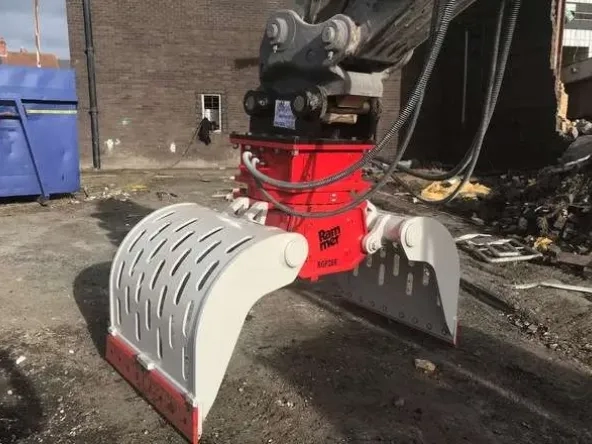

Rammer RGP28R 22t-30t Grapple
Minimum working weight, flange mounted 2315 kg (1)
Weight 2100 kg
Max. jaw opening 2230 mm
Jaw width 1300 mm
Operating pressure 300 – 350 bar
Max. operating pressure 350 bar
Max pressure for hydraulic rotation 150 bar
Oil flow range 70 – 80 l/min
Oil flow for hydraulic rotation 30 l/min
Pressure line connection (IN) 3/4″ GAS
Return line connection (OUT) 3/4″ GAS
Connections, rotation 1/2″ GAS
Optimum oil temperature 40 – 60 °C
Allowed oil temperature range -20 – 80 °C
Optimum oil viscosity at operating temperature 30 – 60 cSt
Allowed viscosity range 20 – 1000 cSt
Carrier weight, range 25 – 30 t (2)
*1 Includes average mounting bracket and standard tool
*2 Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.
