Company Description

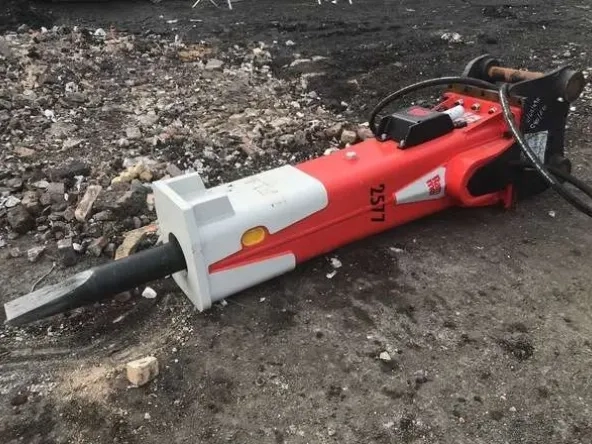

Rammer BR2577 22t-30t Hydraulic Breaker
Minimum working weight, flange mounted – 1760 kg (1)
Weight 1460 kg
Working length 2299 mm
Impact rate (frequency) 450 – 750 bpm
Operating pressure 135 – 145 bar
Pressure relief min 190 bar (2)
Pressure relief max 220 bar
Oil flow range 140 – 200 l/min
Back pressure max 10 bar
Input power 48 kW
Tool diameter 135 mm
Pressure line connection (IN) SAE 6000 psi 1 1/4″
Return line connection (OUT) SAE 6000 psi 1 1/4″
Pressure line size 26 mm (3)
Return line size 32 mm 1.26 in(3)
Grease connection BSPP-internal 3/8″
Air connection (A) BSPP-internal 3/8″
Optimum oil temperature 40 – 60 °C
Allowed oil temperature range -20 – 80 °C
Optimum oil viscosity at operating temperature 30 – 60 cSt
Allowed viscosity range 20 – 1000 cSt
Carrier weight, optimum 23 – 30 t
Carrier weight, range 21 – 32 t (*4)
Noise level, measured (2000/14/EC) 120 dB(A)
Noise level, guaranteed (2000/14/EC) 124 dB(A)
*1 Includes average mounting bracket and standard tool
*2 Minimum setting = actual operating pressure + 50 bar or 725 psi
*3 minimum inner diameter
*4 Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.
Delivery charge includes delivery and collection within 30 miles radius of Penrith. If distance required is further, please message us.
15% Discounted rate for weekly hire – please message us.
